Architectural plan 9*20 north

Product Title: Residential Building Architectural Plan

Product Description:

Overview: This detailed architectural plan offers a multi-story residential complex designed to maximize space and functionality. Ideal for developers, architects, and homeowners, this plan includes clear layouts and structural details that are optimized for efficient, adaptable use.

Key Features:

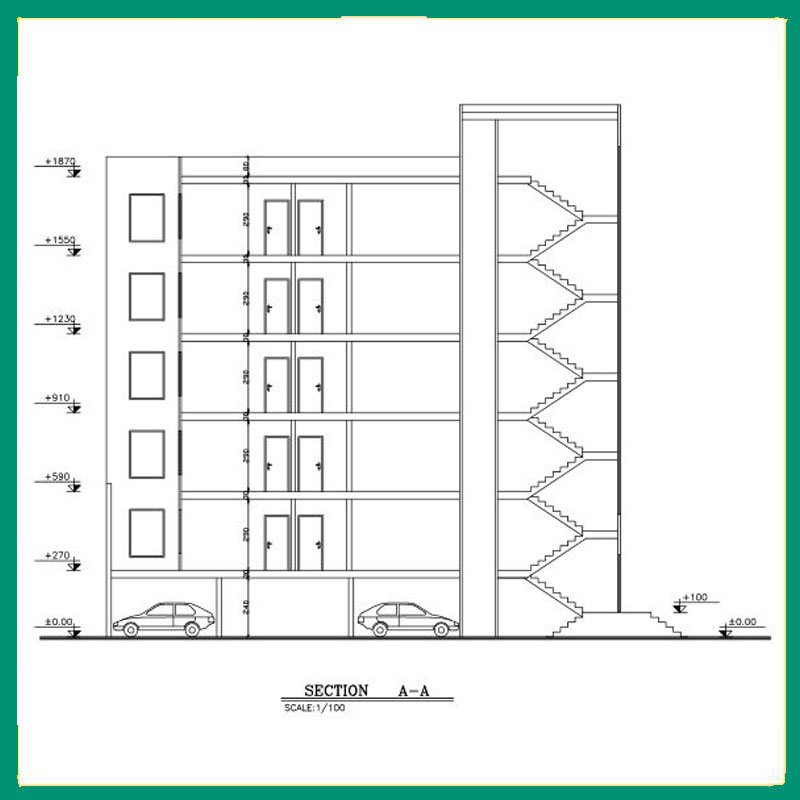

• Building Structure: Consists of 5 residential floors above a pilot floor, based on a steel framework with no obstructive columns.
• Residential Units: Includes 5 single-unit residential floors, featuring flexible layouts adaptable to internal changes.

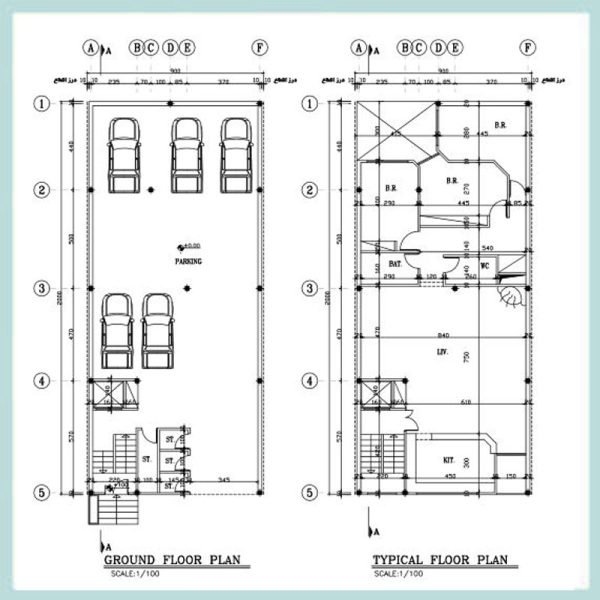

• Parking & Storage: The pilot floor includes 5 parking units.

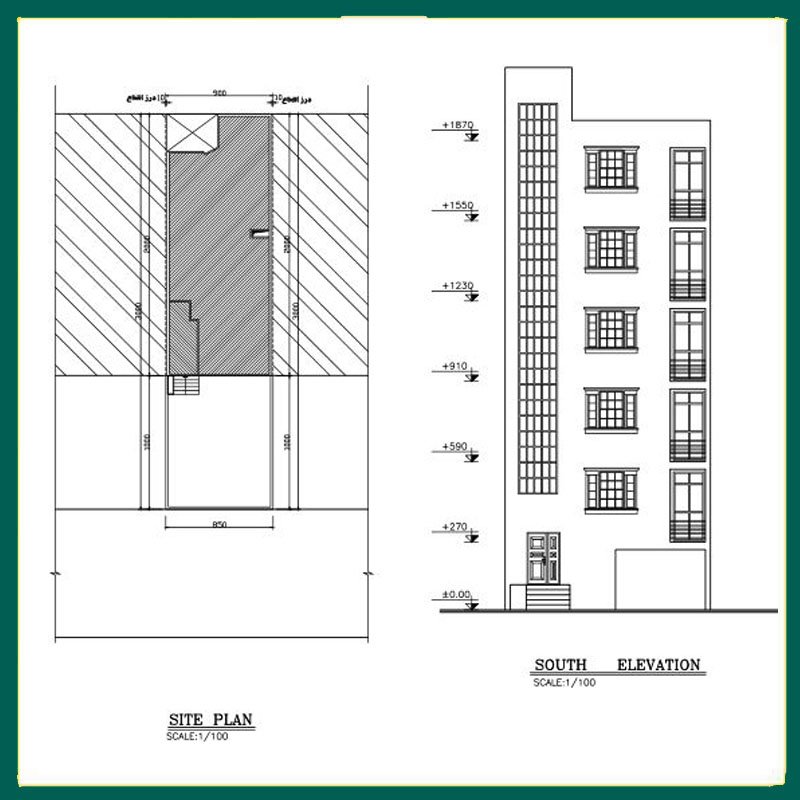

• Orientation: The building is oriented on a north-facing property with a southern passageway, enhancing natural light and access.

Additional Benefits:

• Efficient Use of Space: Designed for optimal space utilization with flexible layouts.
• Customizable Design: Modify partitions easily as the design includes adaptable, column-free spaces.
• Included Formats: Plans are available in DWG format for full customization, with PDFs available upon request.

Ideal For: This architectural plan is perfect for urban residential developments, providing a strong foundation for modern, adaptable spaces.

Some specifications of map architecture:

•   5 residential floors

•    A ground floor parking lot

•   Northern

• single unit

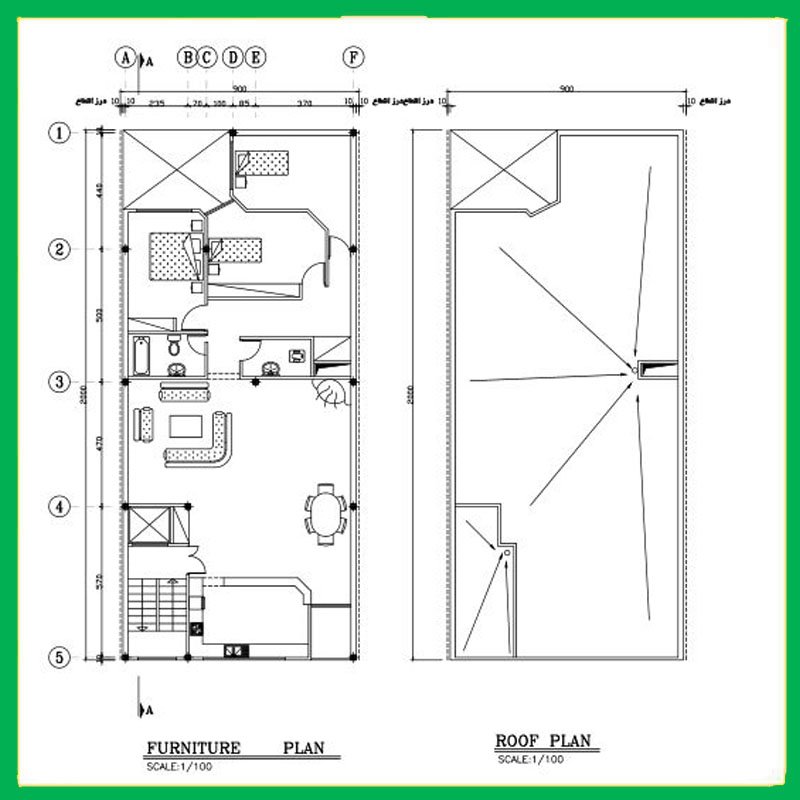

•   3 bedrooms
